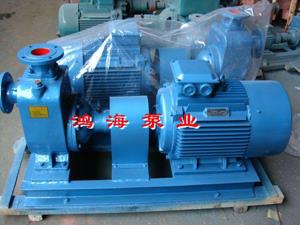

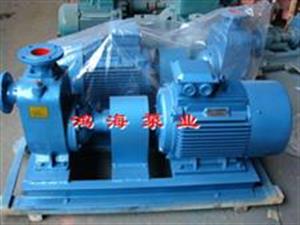

CWZ船用卧式离心油泵详细介绍
CWZ系列船用卧式自吸离心泵具有结构紧凑，外形美观，自吸性能好，安装使用方便等特点，是理想的船舶给排水用泵。
| 型号 规格 | 流 量(m3/h) | 扬 程(m) | 转 速(r/min) | 汽蚀余量(m) | 吸入高度(m) | 效率(%) | 电机功率(kw) | 单泵重量(kg) |
| 32CWZ-5 | 8 | 21 | 2950 | 4 | 6 | 38 | 1.5 | 28 |
| 32CWZ-4 | 8 | 30 | 2950 | 4 | 6 | 40 | 2.2 | 30 |
| 32CWZ-3 | 8 | 42 | 2950 | 4 | 6 | 36 | 4 | 30 |
| 40CWZ-6 | 12 | 21 | 2950 | 4 | 6 | 52 | 2.2 | 48 |
| 40CWZ-5 | 12 | 30 | 2950 | 4 | 6 | 51 | 3 | 50 |
| 40CWZ-4 | 12 | 42 | 2950 | 4 | 6 | 47 | 4 | 50 |
| 50CWZ-8 | 21 | 21 | 2950 | 4 | 6 | 51 | 3 | 46 |
| 50CWZ-6 | 21 | 30 | 2950 | 4 | 6 | 56 | 4 | 60 |
| 50CWZ-5 | 21 | 42 | 2950 | 5 | 5 | 52 | 5.5 | 52 |
| 65CWZ-11 | 36 | 21 | 2950 | 4 | 6 | 64 | 4 | 50 |
| 65CWZ-8 | 36 | 30 | 2950 | 4 | 6 | 61 | 5.5 | 52 |
| 65CWZ-6 | 36 | 42 | 2950 | 5 | 5 | 57 | 11 | 65 |
| 65CWZ-5 | 36 | 60 | 2950 | 5 | 5 | 52 | 15 | 78 |
| 80CWZ-14 | 60 | 21 | 2950 | 4 | 6 | 67 | 7.5 | 100 |
| 80CWZ-11 | 60 | 30 | 2950 | 4 | 6 | 65 | 11 | 100 |
| 80CWZ-8 | 60 | 42 | 2950 | 5 | 5 | 55 | 15 | 100 |
| 80CWZ-6 | 60 | 60 | 2950 | 5 | 5 | 54 | 22 | 100 |
| 80CWZ-5.5 | 60 | 75 | 2950 | 5 | 5 | 56 | 30 | 120 |
| 100CWZ-18 | 100 | 21 | 2950 | 5 | 5 | 68 | 11 | 112 |
| 100CWZ-14 | 100 | 30 | 2950 | 5 | 5 | 65 | 15 | 112 |
| 100CWZ-11 | 100 | 42 | 2950 | 5 | 5 | 58 | 22 | 135 |
| 100CWZ-8 | 100 | 60 | 2950 | 5 | 5 | 55 | 37 | 188 |
| 100CWZ-6 | 100 | 85 | 2950 | 5 | 5 | 50 | 55 | 188 |
| 125CWZ-23.5 | 160 | 20 | 2950 | 5 | 5 | 60 | 18.5 | |
| 125CWZ-16.5 | 160 | 32 | 2950 | 5 | 5 | 63 | 30 | |
| 150CWZ-13 | 200 | 20 | 1450 | 5 | 5 | 60 | 22 | |
| 150CWZ-9 | 200 | 30 | 1450 | 5 | 5 | 55 | 37 | |
| 150CWZ-7 | 200 | 45 | 1450 | 5 | 5 | 65 | 45 | |
| 200CWZ-9 | 300 | 45 | 1450 | 5 | 5 | 70 | 75 |
